FPT-PTZ Optical Transmission for PTZ Camera

Gallery

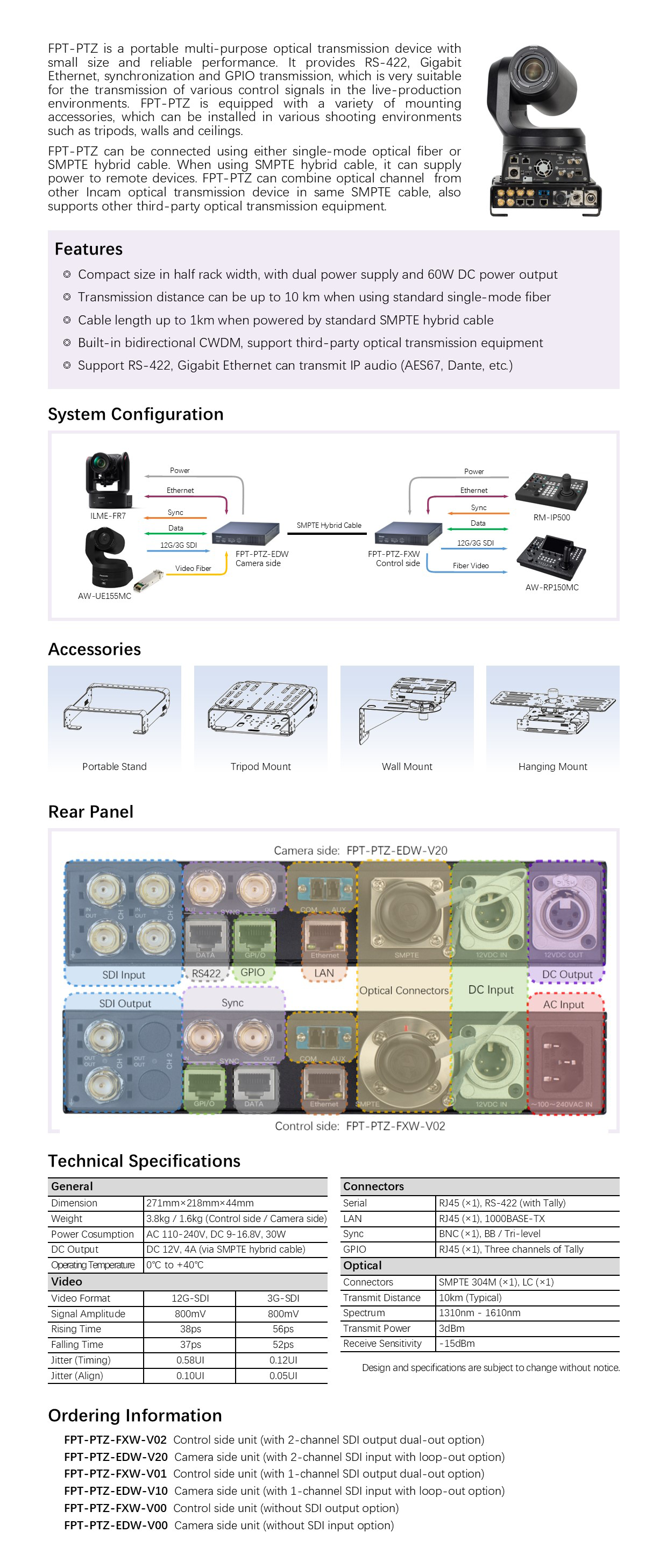

Overview

DockOptic-PTZ is a portable multi-purpose optical transmission device with small size and reliable performance, meeting the broadcasting production workflows. It supports 1 x 12G-SDI and 1 fiber input with 12G SFP at CAM side, and receive 2 x 12G-SDI output at CCU side. It also provides 1 x RS-422, 1 x Gigabit Ethernet, 1 x SYNC, 1 x Timecode and 2 x GPIO.
DockOptic-PTZ is easy to install with 1/4 screwed holes, making it compatible with a variety of mounting accessories, which can be installed in various shooting environments such as tripods, walls and ceilings. DockOptic-PTZ can be connected using SMPTE hybrid cable, supplying power to remote devices up to 1km.

Feature

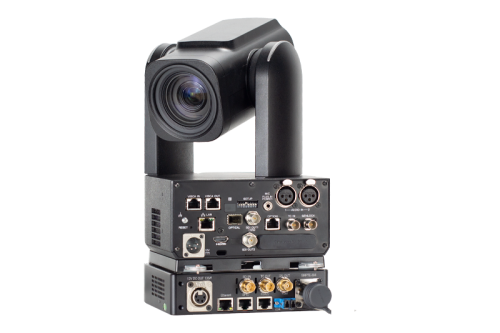

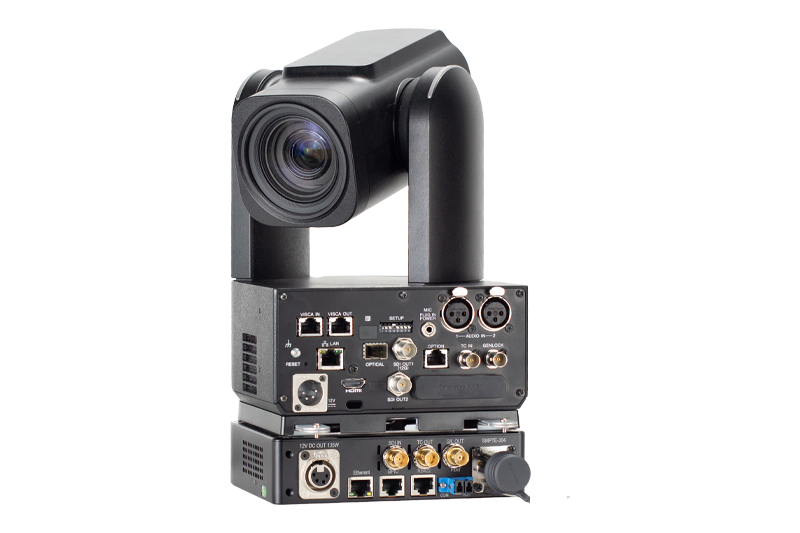

  • Compatible with Panasonic UE150, 160, Sony ILME-FR7, BRC-AM7, etc.

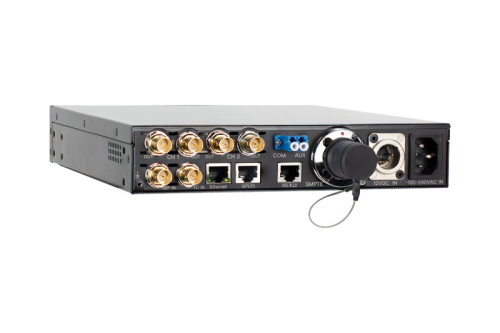

  • 1 RU Compact Near end unit in half rack width, with dual power supply

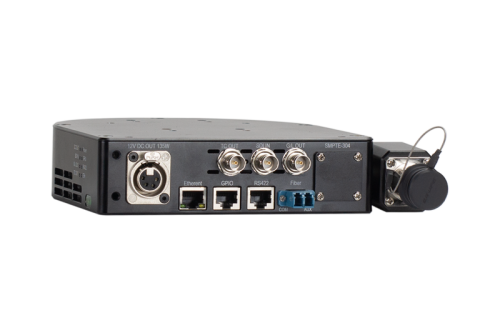

  • 130W 12VDC power output at far end with optional 19VDC version
  • Cable length up to 1km when powered by standard SMPTE hybrid cable
  • Built-in bidirectional CWDM, support 1 x 12G-SDI from AUX interface from SFP
  • Support RS-422, GPIO, GbE, TC, and Sync

    • Specifications

    DimensionWeightPowerOperating TemperatureOperating Humidity
    225*168*42/271*218*44mm2.3/1.5kg（Near/ Far）AC 100-240V,DC 9-16.8V-10℃ to +40℃20% to 80%
    Transmission DistanceWavelengthTransmit PowerReceive SensitivityConnection
    10km（typ.）1310nm to 1450nm0dBm-15dBmSMPTE 304M(x1)
    EthernetSerial DataSYNCGPIOTimecode
    RJ45(x1) ,1000BASE-TXRJ45(X1), RS-422BNC (x1),BBRJ45 (X1), 2 x TallyBNC(x1)
    Video FormatInterfaceSignal StandardResistenceCable Equalization
    12G-SDIBNC (×4)（Near）
    BNC (×1)（Far）    		SMPTE ST 2082-1/2081-1
    SMPTE 424M/292M/259M    		75Ω />4dB50m，Belden 4794R
    or 3G-SDI75Ω />10dB100m，Belden 1694A
    Video FormatSignal AmplitudeDC OffsetRising/Falling TimeJitter Timing/Align
    12G-SDI800mV±4mV38ps/37ps0.58UI/0.10UI
    or 3G-SDI56ps/ 52ps0.12UI/0.05UI
