PS-EFP Power Solutions for Broadcast Cameras(SONY…)

Gallery

Overview

The PS-EFP SHED system is designed to provide most cost-effective solution of power and data connection suchas video and communication between the camera ancthe CCU with standard single-mode optical fiber whichcan be up to 10km.
When combined with the PS-EFP-B base station adapter and PS-EFP-C-AC camera adapter, cameras can be remotely deployed using the ordinary single-mode optical fiber network that may exist within a stadium, campus or other outside broadcast.

Feature

  • Compatible with Sony, Panasonic, Hitachi and Ikegami
  • Eliminate interference and grounding problems, saving the weight and cost of laying cables
  • Use single-mode fiber to connect cameras and CCUs through existing fiber infrastructure, or temporary field fiber cables
  • Support standard camera poawer supply protocol for transparent connection
  • Supply power to Camera over 1.5km via SMPTE cables with sufficient power for box lenses & high-power accessories
  • Keep the ENG call function when the optical fiber is kept connected, while the camera is powered off and the CCU is powered on

    • Specifications

    Power InputConsumptionPower OutputOperating TemperatureOperating Humidity
    AC 220/110V,50/60HZ30W320W（Max.）-20℃ to +70℃0% to 95%

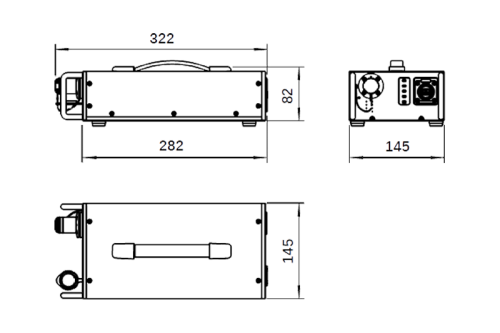

    Hybrid Cable ConnectorSingle-mode FiberDimension
    （PS-EFP-C-AC）    		Dimension
    （PS-EFP-B）    		Dimension
    （PS-EFP-C）
    SMPTE 304M
    optional Tajimi    		LC，
    optional SC、FC、ST    		282*145*82mm150*40*40mm154*40*40mm
