CustOptic-V120

Gallery

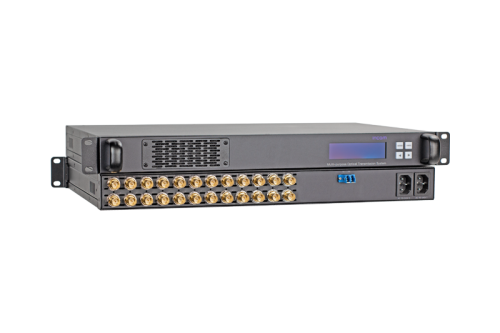

Overview

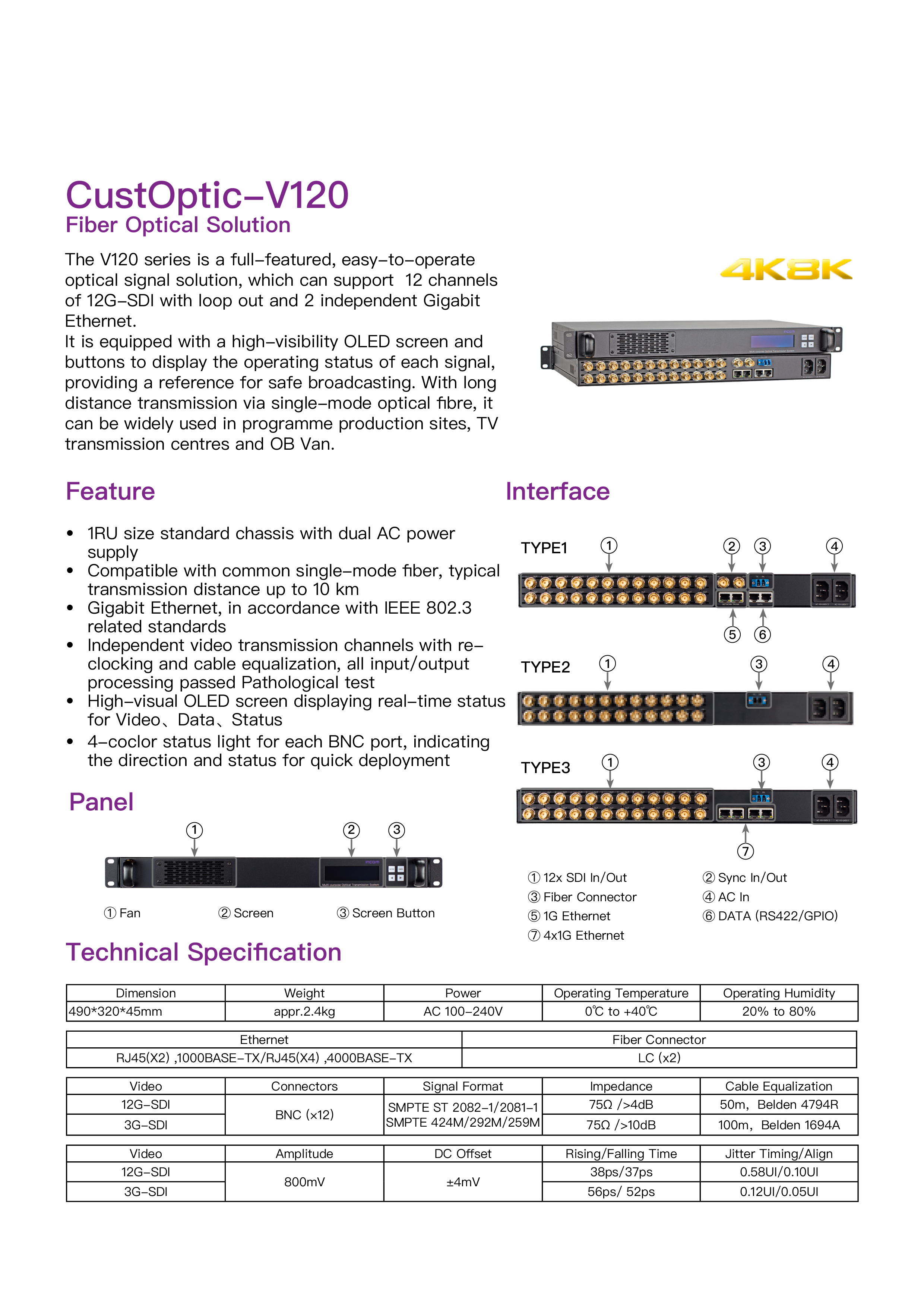

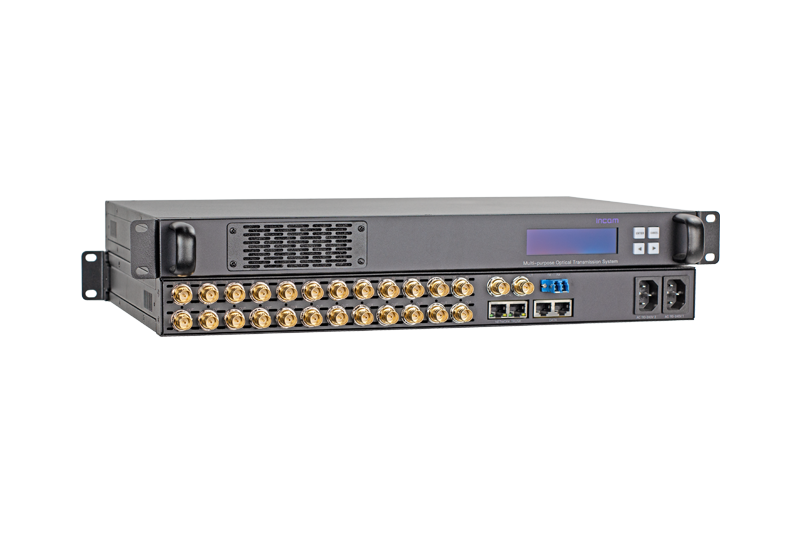

The V120 series is a full-featured, easy-to-operate optical signal solution, which can support 12 channels of 12G-SDI with loop out and 2 independent Gigabit Ethernet.
It is equipped with a high-visibility OLED screen and buttons to display the operating status of each signal, providing a reference for safe broadcasting. With long distance transmission via single-mode optical fibre, it can be widely used in programme production sites, TV transmission centres and OB Van.

Feature

  • 1RU size standard chassis with dual AC power supply
  • Compatible with common single-mode fiber, typical transmission distance up to 10 km
  • Gigabit Ethernet, in accordance with IEEE 802.3 related standards
  • Independent video transmission channels with re-clocking and cable equalization, all input/output processing passed Pathological test
  • High-visual OLED screen displaying real-time status for Video、Data、Status
  • 4-coclor status light for each BNC port, indicating the direction and status for quick deployment

    • Specifications

    DimensionWeightPowerOperating TemperatureOperating Humidity
    490*320*45mmappr.2.4kgAC 100-240V0℃ to +40℃20% to 80%
    EthernetFiber Connector
    RJ45(X2) ,1000BASE-TX/RJ45(X4) ,4000BASE-TXLC (x2)
    VideoConnectorsSignal FormatImpedanceCable Equalization
    12G-SDIBNC
    (×12)    		SMPTE ST 2082-1/2081-1
    SMPTE 424M/292M/259M    		75Ω />4dB50m，Belden 4794R
    3G-SDI75Ω />10dB100m，Belden 1694A
    VideoAmplitudeDC OffsetRising/Falling TimeJitter Timing/Align
    12G-SDI800mV±4mV38ps/37ps0.58UI/0.10UI
    3G-SDI56ps/ 52ps0.12UI/0.05UI
