IV4K-1200 Cinematic Multicam Solution

Gallery

Overview

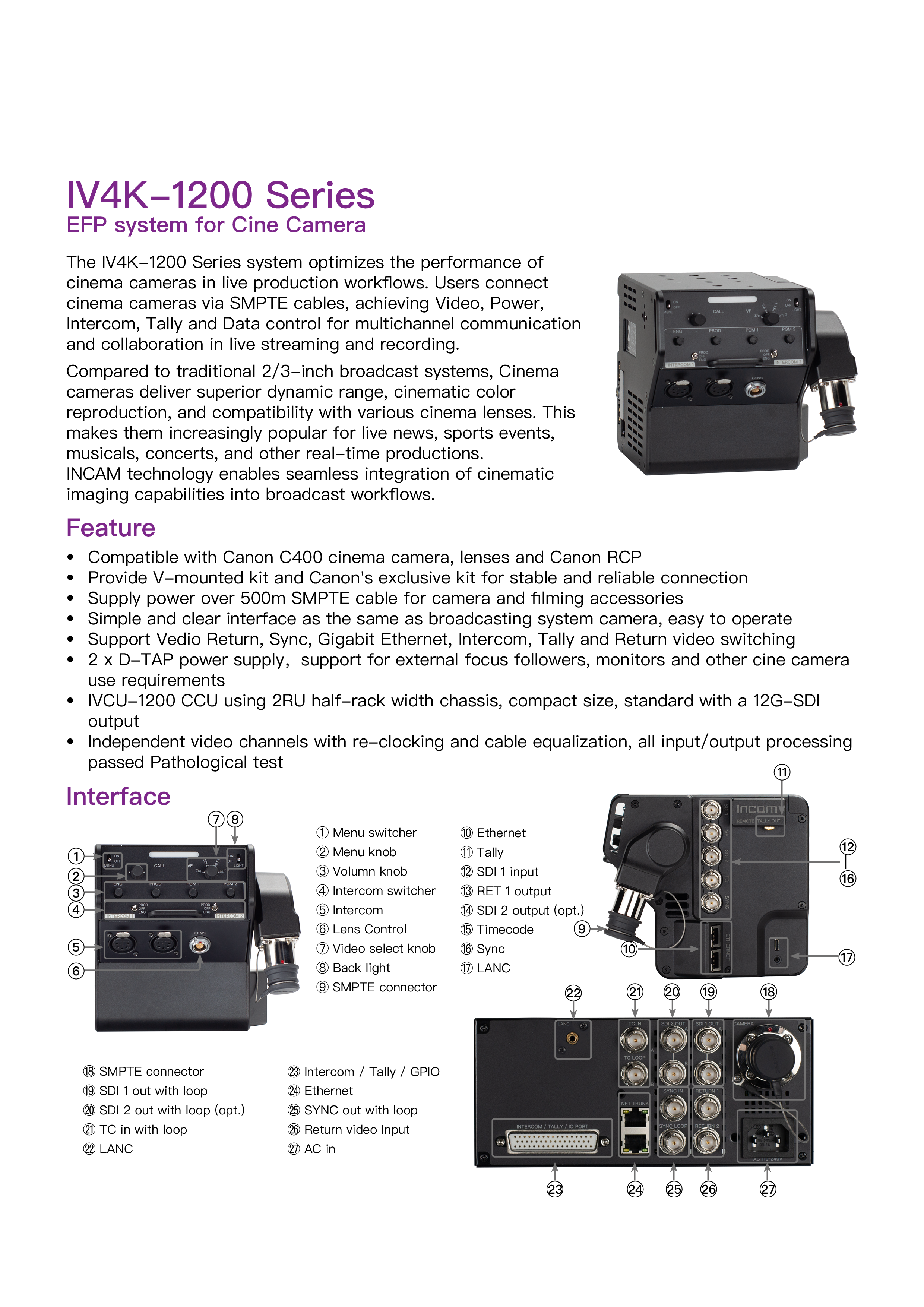

The IV4K-1200 Series system optimizes the performance of cinema cameras in live production workflows. Users connect cinema cameras via SMPTE cables, achieving Video, Power, Intercom, Tally and Data control for multichannel communication and collaboration in live streaming and recording.
Compared to traditional 2/3-inch broadcast systems, Cinema cameras deliver superior dynamic range, cinematic color reproduction, and compatibility with various cinema lenses. This makes them increasingly popular for live news, sports events, musicals, concerts, and other real-time productions.
INCAM technology enables seamless integration of cinematic imaging capabilities into broadcast workflows.

Feature

  • Compatible with Canon C400 cinema camera, lenses and Canon RCP
  • Provide V-mounted kit and Canon's exclusive kit for stable and reliable connection
  • Supply power over 500m SMPTE cable for camera and filming accessories
  • Simple and clear interface as the same as broadcasting system camera, easy to operate
  • Support Vedio Return, Sync, Gigabit Ethernet, Intercom, Tally and Return video switching
  • 2 x D-TAP power supply，support for external focus followers, monitors and other cine camera use requirements

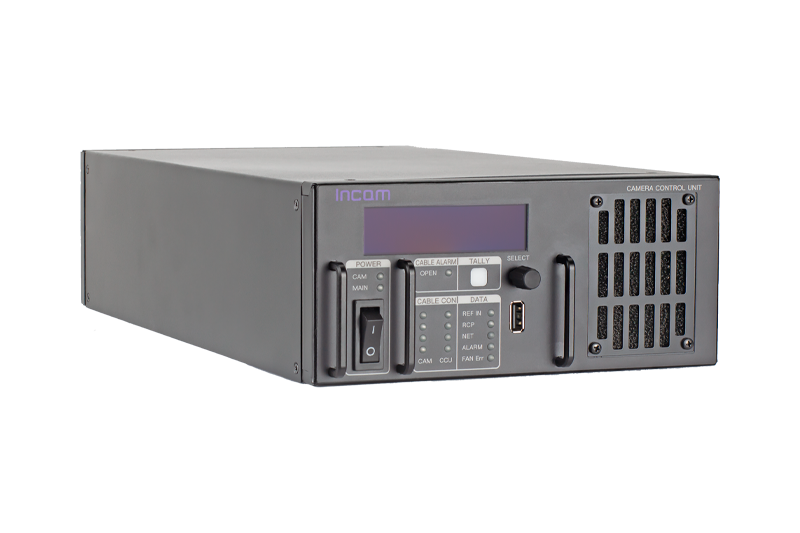

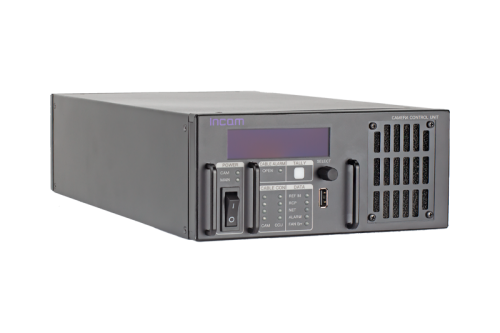

  • IVCU-1200 CCU using 2RU half-rack width chassis, compact size, standard with a 12G-SDI output
  • Independent video channels with re-clocking and cable equalization, all input/output processing passed Pathological test

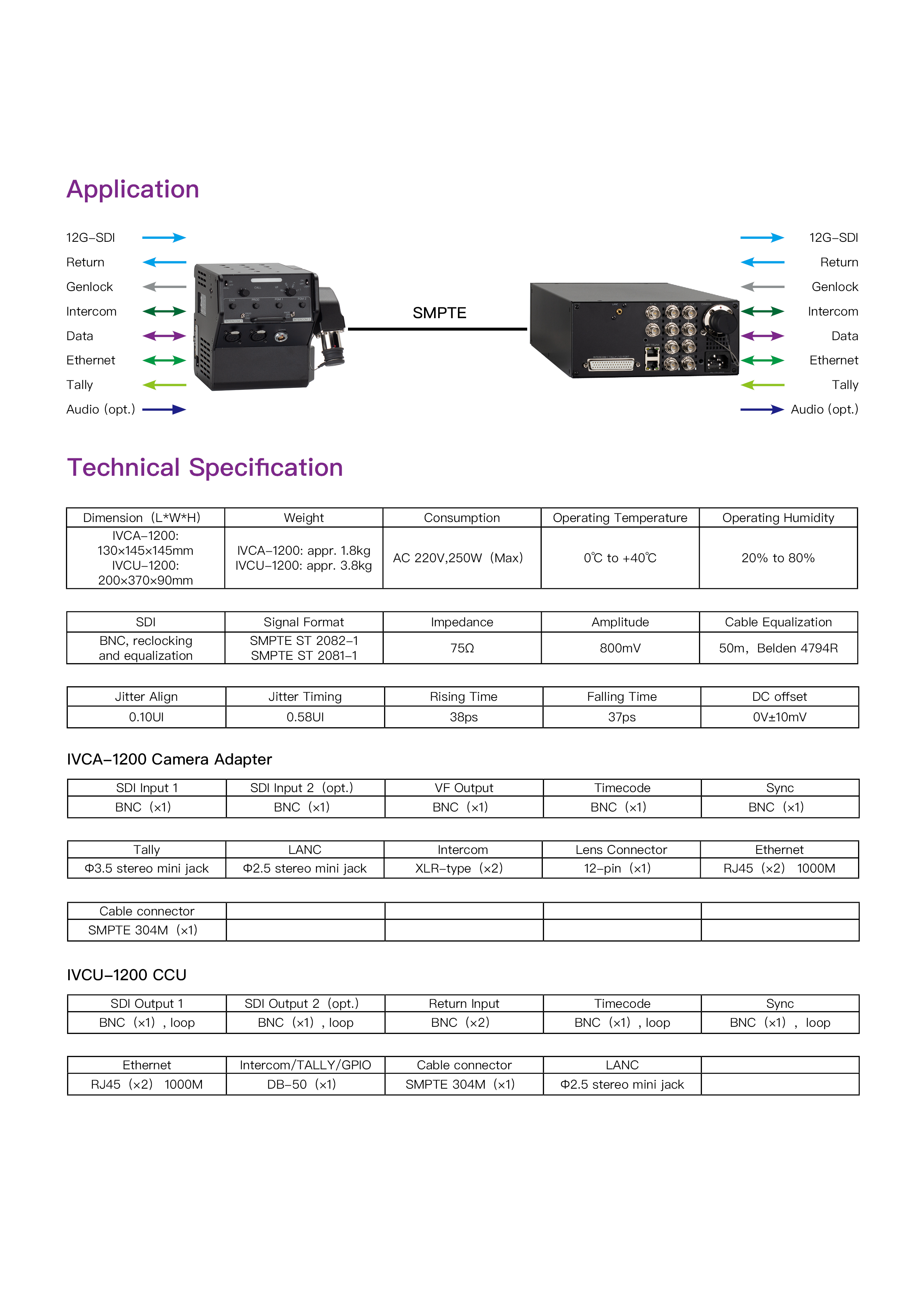

    • Specifications

    Dimension（L*W*H）WeightConsumptionOperating TemperatureOperating Humidity
    IVCA: 130×145×145mm
    IVCU: 200×370×90mm    		IVCA: appr. 1.8kg
    IVCU: appr. 3.8kg    		AC 220V,250W（Max）0℃ to +40℃20% to 80%
    SDISignal FormatImpedanceAmplitudeCable Equalization
    BNC, reclocking
    and equalization    		SMPTE ST 2082-1,
    SMPTE ST 2081-1    		75Ω800mV50m，Belden 4794R
    Jitter AlignJitter TimingRising TimeFalling TimeDC Offset
    0.10UI0.58UI38ps37ps0V±10mV

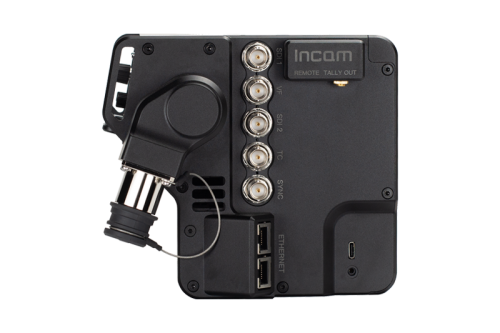

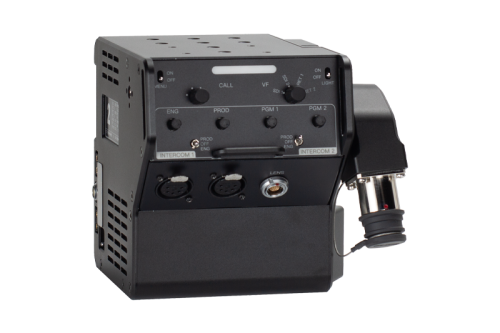

    IVCA-1200

    SDI Input1SDI Input2（opt.）VF OutputTimecodeSync
    BNC（×1）BNC（×1）BNC（×1）BNC（×1）BNC（×1）
    TallyLANCIntercomLens ConnectorEthernet
    Φ3.5 stereo mini jackΦ2.5 stereo mini jackXLR-type（×2）12-pin（×1）RJ45（×2） 1000M
    Cable connector　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
    SMPTE 304M（×1）

    IVCU-1200

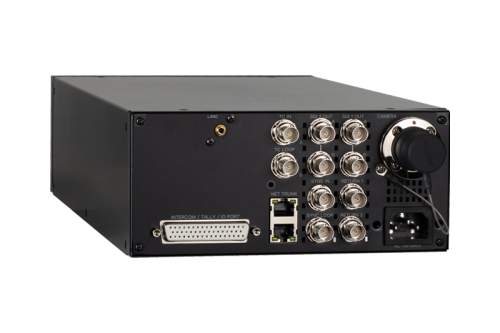

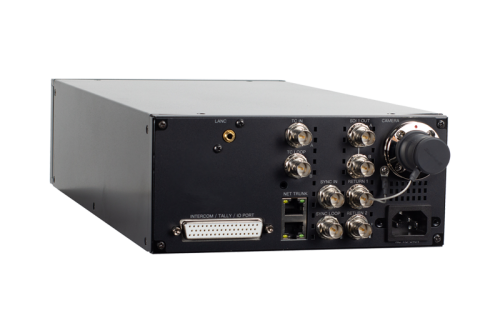

    SDI Output1SDI Output 2（opt.）Return InputTimecodeSync
    BNC（×1）, loopBNC（×1）, loopBNC（×2）BNC（×1），loopBNC（×1）, loop
    EthernetIntercom/TALLY/GPIOCable connectorLANC　　　　　　　　
    RJ45（×2） 1000MDB-50（×1）SMPTE 304M（×1）Φ2.5 stereo mini jack
