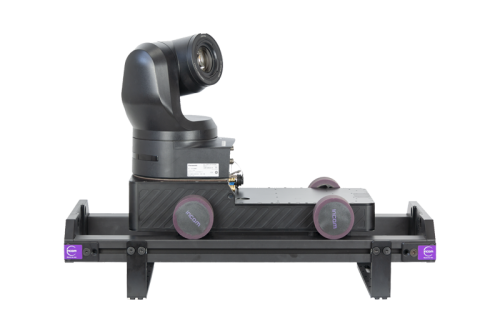

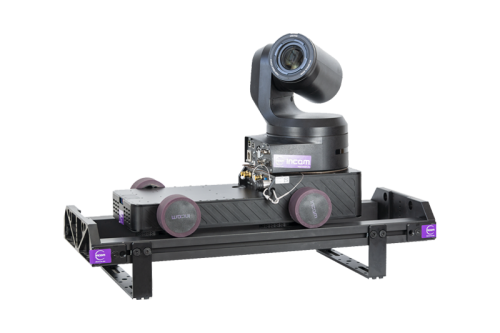

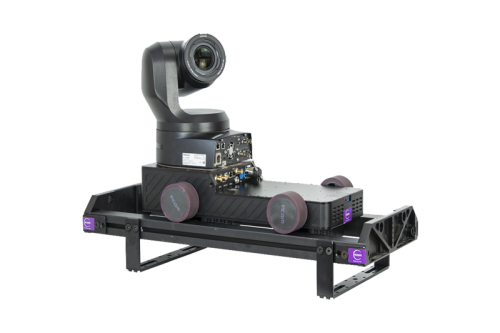

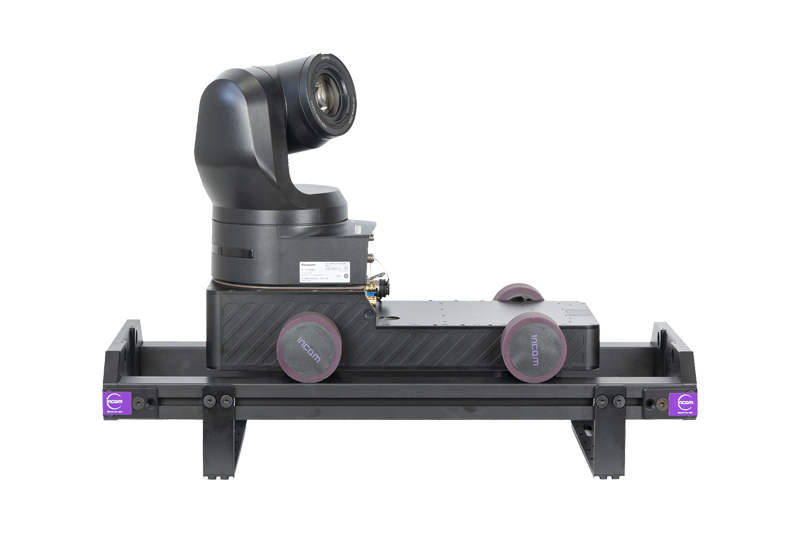

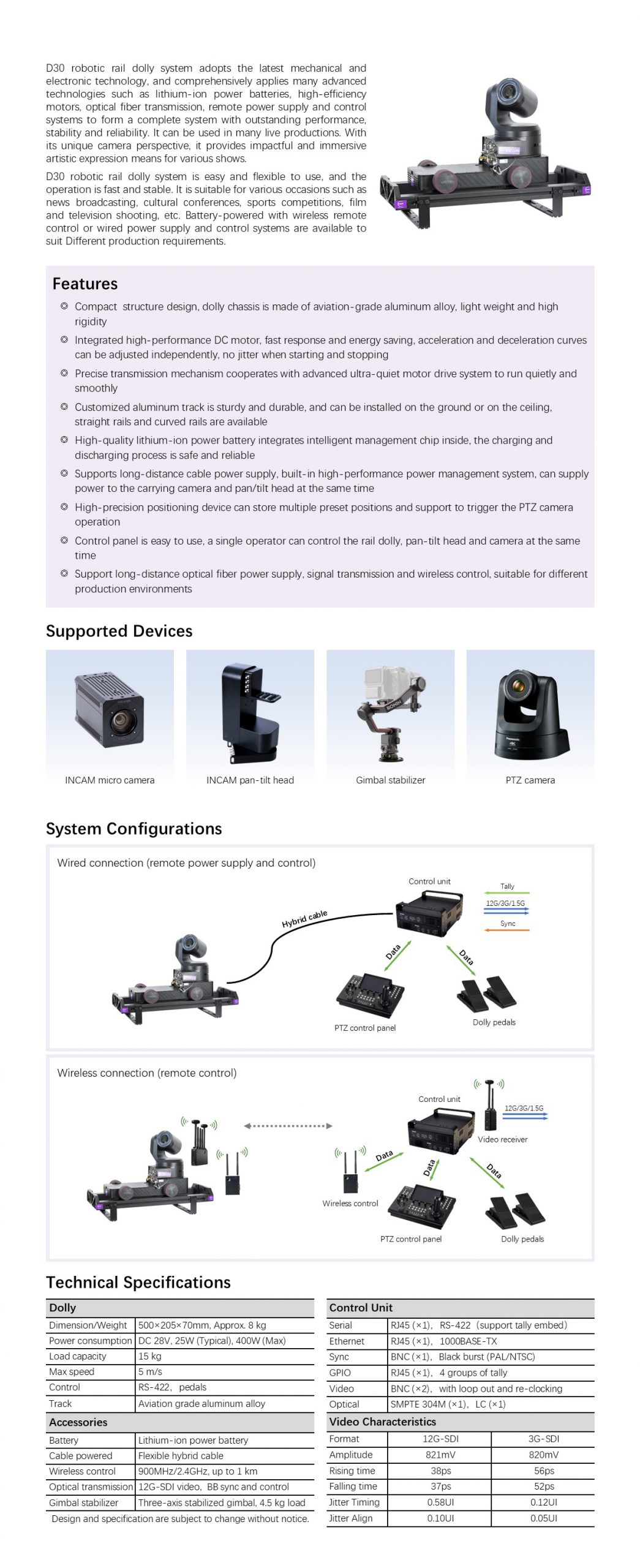

D30 Robotic Rail Dolly System

Gallery

Overview

D30 robotic rail dolly system adopts the latest mechanical and electronic technology, and comprehensively applies many advanced technologies such as lithium-ion power batteries, high-efficiency motors, optical fiber transmission, remote power supply and control systems to form a complete system with outstanding performance, stability and reliability. It can be used in many live productions. With its unique camera perspective, it provides impactful and immersive artistic expression means for various shows.
D30 robotic rail dolly system is easy and flexible to use, and the operation is fast and stable. It is suitable for various occasions such as news broadcasting, cultural conferences, sports competitions, film and television shooting, etc. Battery-powered with wireless remote control or wired power supply and control systems are available to suit Different production requirements.

Feature

  • Compact structure design, dolly chassis is made of aviation-grade aluminum alloy, light weight and high rigidity
  • Integrated high-performance DC motor, fast response and energy saving, acceleration and deceleration curves can be adjusted independently, no jitter when starting and stopping
  • Precise transmission mechanism cooperates with advanced ultra-quiet motor drive system to run quietly and smoothly
  • Customized aluminum track is sturdy and durable, and can be installed on the ground or on the ceiling, straight rails and curved rails are available
  • High-quality lithium-ion power battery integrates intelligent management chip inside, the charging and discharging process is safe and reliable
  • Supports long-distance cable power supply, built-in high-performance power management system, can supply power to the carrying camera and pan/tilt head at the same time
  • High-precision positioning device can store multiple preset positions and support to trigger the PTZ camera operation
  • Control panel is easy to use, a single operator can control the rail dolly, pan-tilt head and camera at the same time
  • Support long-distance optical fiber power supply, signal transmission and wireless control, suitable for different production environments

    • Specifications

    Dolly

    DimensionWeightPower consumptionLoad capacityMax speed
    500×205×70mmApprox. 8 kgDC 28V, 25W (Typical),400W (Max)15 kg5 m/s
    ControlTrack　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
    RS-422，pedalsAviation grade aluminum alloy

    Control Unit

    SerialEthernetSyncGPIOVideo
    RJ45 (×1)，RS-422
    （support tally embed）    		RJ45 (×1)，
    1000BASE-TX    		BNC (×1)，
    Black burst (PAL/NTSC)    		RJ45 (×1)，
    4 groups of tally    		BNC (×2)，
    with loop out and re-clocking

    Video Characteristics

    Video FormatAmplitudeRising timeFalling TimeJitter Timing/Align
    12G-SD821mV38ps37ps0.58UI/0.10UI
    3G-SDI820mV56ps52ps0.12UI/0.05UI

    Accessories

    BatteryCable poweredWireless controlOptical transmissionGimbal stabilizer
    Lithium-ion
    power battery    		Flexible hybrid cable900MHz/2.4GHz,
    up to 1 km    		12G-SDI video,
    BB sync and control    		Three-axis stabilized
    gimbal, 4.5 kg load
