ProOptic Series
All-in-One Optical Transmission Platform
The ProOptic series is a diversified and versatile optical signal solution. It supports 12 channels of 12G-SDI, 4 Bidirectional Audio with Phantom Power, 1 Independent Sync, 2 RS-422 Serial Data, 4 Gigabit Ethernet, 4 GPIO, etc. ProOptic series achieves signal extension unit via SMPTE hybrid cables, which can be widely used in applications such as Venue Production and Sports Broadcasting.
Feature
-
•
A compact 2RU unit designed for rack-mounted applications -
•
12G-SDI video transmission, compatible with 6G/3G/1.5G/SD -
•
Supports MADI audio transmission -
•
upports SYNC transmission (Black Burst, Tri-Level) -
•
Supports Time Code transmission -
•
Equipped with redundant wide-range AC power supply -
•
Features temperature monitoring and intelligent fan control -
•
Fitted with a 256×64 pixel monochrome wide-viewing angle
OLED display
Signal Input/Output
-
•
12 × 12G/6G/3G/HD/SD-SDI Input/Output -
•
1 × SYNC Input with loop(Near end), 2 × SYNC Output(Far end) -
•
1 × TC Input with loop(Near end), 2 × TC Output(Far end) -
•
4 × GPI Input(Near end, )4 × GPO Output(Far end) -
•
2 × RS422, support SONY Protocol -
•
4 × 1G Ethernet with POE (IEEE802.3af) -
•
4 × Audio IN with +48V Phantom Power, 4 × Audio OUT -
•
2 × LC connector -
•
1 × SMPTE Hybrid cable connector(Optional)
Signal Monitoring
-
•
SDI Signal Rate Monitoring -
•
SDI Signal Level Monitoring -
•
Audio Level Monitoring
User Interface
OLED Display with Four-Key Navigation
-
•
SDI Video Format & Signal Quality -
•
Optical Signal Quality -
•
Data Signal Status -
•
Audio Level Indicators -
•
Fan Status -
•
System Temperature (Average & Maximum)
Front Panel
-
1
Fan -
2
Control -
3
USB -
4
OLED Screen -
5
Screen button -
6
Fan
Model Instructions
1
Model Type:
ProOptic Series
2
Options:
- Near: Single-mode fiber connection at OB side
- Far: Single-mode fiber connection at CAM side
- FXW: SMPTE connection at OB side
- EDW: SMPTE connection at CAM side
3
Number of input channel:
0 to 12
4
Number of output channel:
12 to 0
The total number of input and output is not more than 12
Interface

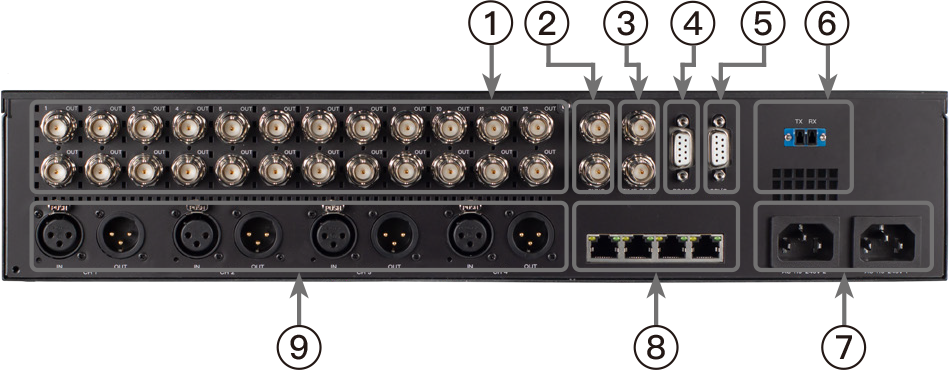

OTPRO-Near-V0012
-
1
SDI In with loop out -
2
SYNC with loop out -
3
TC with loop out -
4
RS422 -
5
GPI -
6
LC Fiber connector -
7
Dual Power supply -
8
1G Ethernet -
9
Audio

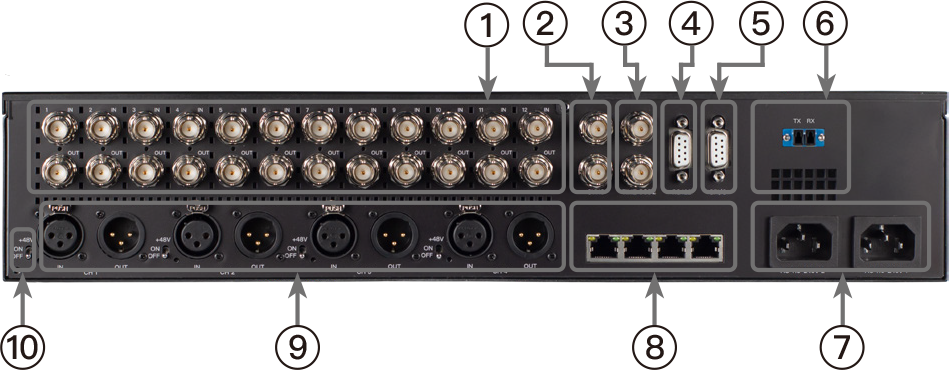

OTPRO-Far-V1200
-
1
SDI In -
2
Sync In/Out -
3
TC Out -
4
RS422 -
5
GPO -
6
LC Fiber connector -
7
Dual Power supply -
8
1G Ethernet -
9
Audio -
10
+48V Phantom Power

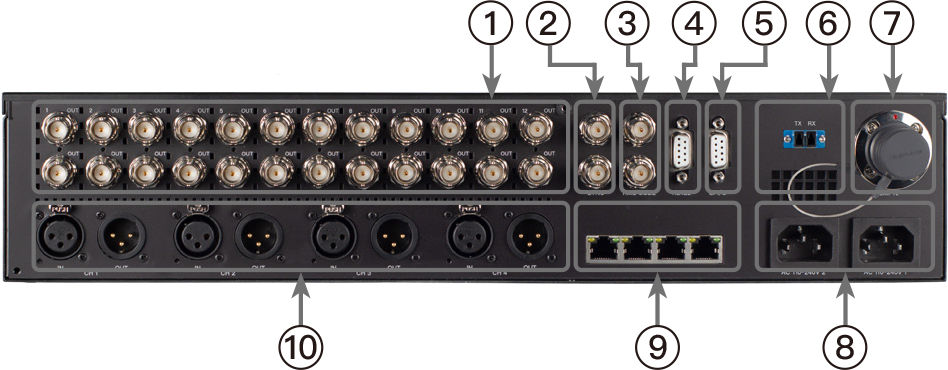

OTPRO-FXW-V0012
-
1
SDI In with loop out -
2
SYNC with loop out -
3
TC with loop out -
4
RS422 -
5
GPI -
6
LC Fiber connector -
7
SMPTE connector -
8
Dual Power supply -
9
1G Ethernet -
10
Audio

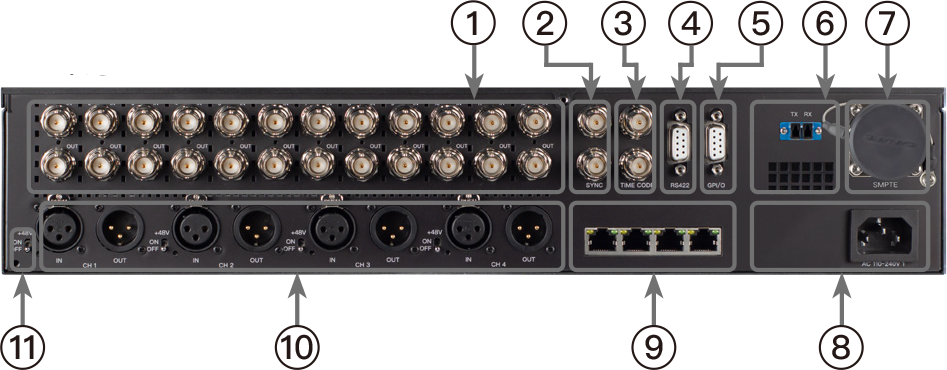

OTPRO-EDW-V1200
-
1
SDI In -
2
Sync In/Out -
3
TC Out -
4
RS422 -
5
GPO -
6
LC Fiber connector -
7
SMPTE connector -
8
Dual Power supply -
9
1G Ethernet -
10
Audio -
11
+48V Phantom Power
Technical Sepecification
SDI
75Ω 12Ω /6G/3G/HD/SD
Output Standard
ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD)、ST-259 (SD), DVB-ASI, AES10
Cable Equalization
>60m @ 12G, >100m @ 6G, >150m @ 3G, >250m @ 1.5G, >500m @ 270Mbps
SDI Output
800mV±4mV, 38ps/37ps @ 12G, 56ps/52ps @ 3G, 0.58UI/0.10UI @ 12G, 0.12UI/0.05UI @ 3G
Ethernet
10M/100M/1000M adaptive,Jumbo Frame Support, PoE compliant with IEEE 802.3af(IEEE 802.3af)
Input Standard
RFC 2544 Standard
SYNC
Black Burst NTSC/PAL,Tri-level 1080i 50/59.95/60,Tri-level 1080p 23/24/25/29/30,720p 23/24/25/29/30/50/59.94/60
RS422
Max Data Rate 10Mbp,compatible with +3.3V and +5V logic levels; SONY 8Pin Protocol
GPI/O
Compatible with +3.3V and +5V logic levels
Audio
20-20kHz @ 48 kHz sample rate
Dimension
0°C to +40°C（Condensation-free）
110 – 240VAC 50/60Hz, 45W
L × H × W ：483mm（19”）× 88.5mm（2 RU）× 340mm，Weight：3.5kg
