V40 Multi-purpose Optical Transmission

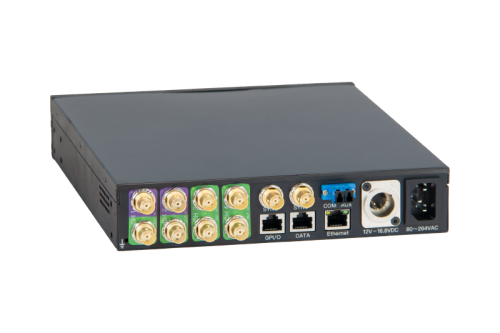

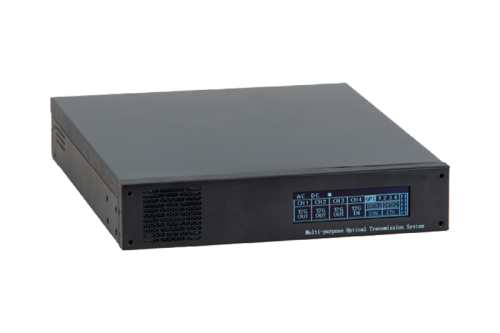

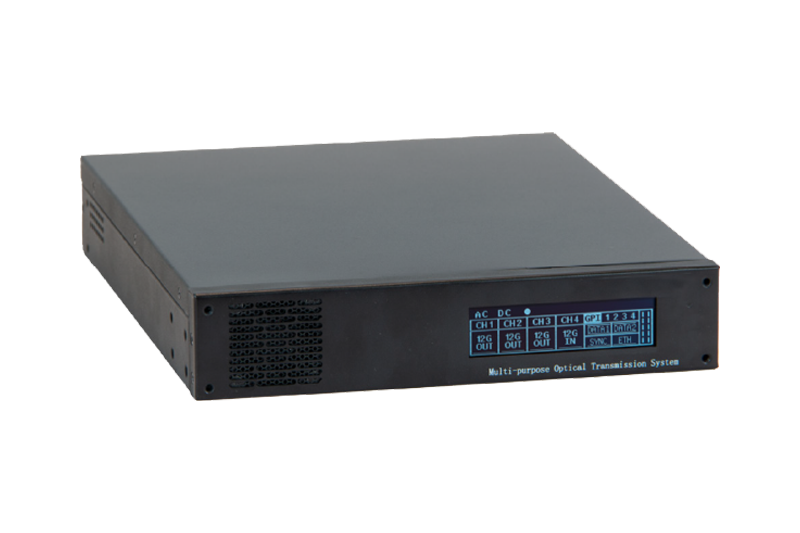

Gallery

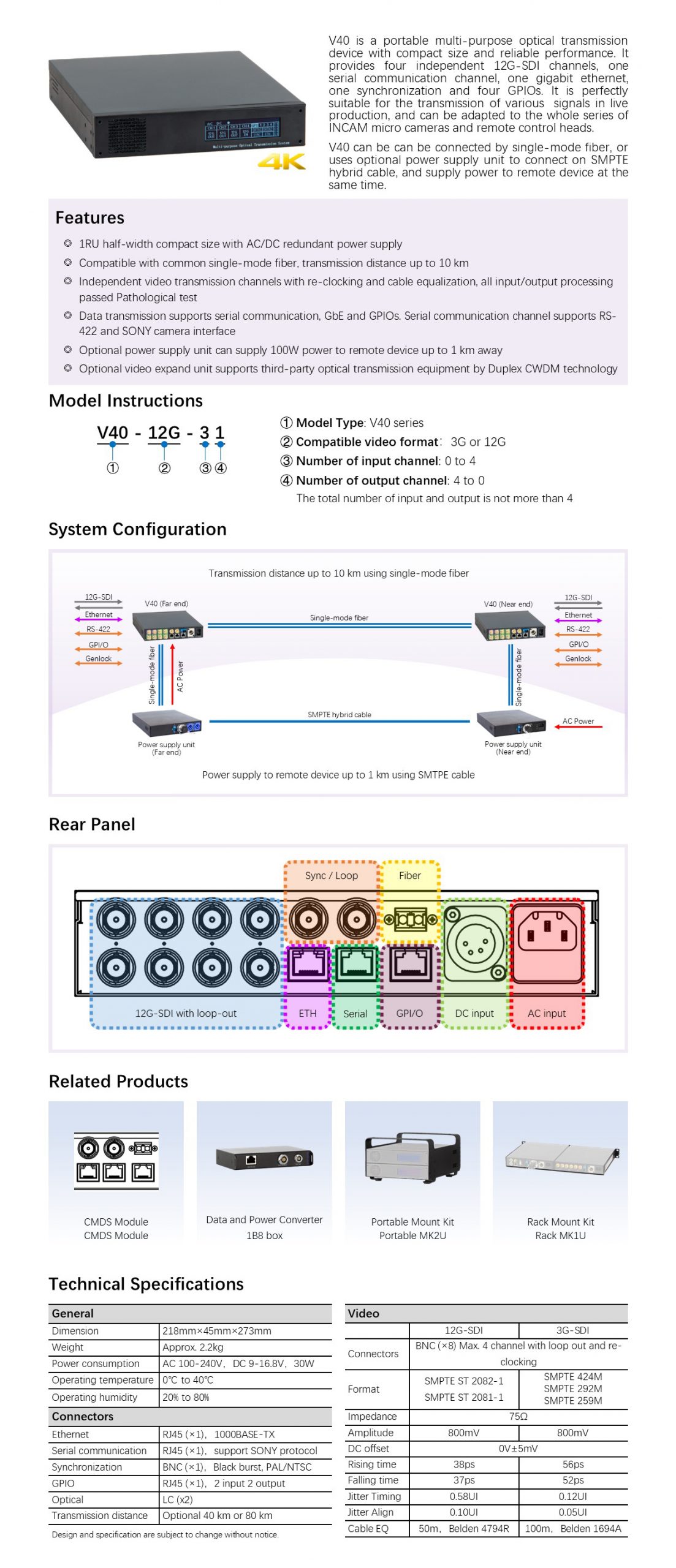

Overview

FlexiOptic is a portable multi-purpose optical transmission device with compact size and reliable performance. It provides four independent 12G-SDI channels, one serial communication channel, one gigabit ethernet, one synchronization and four GPIOs. It is perfectly suitable for the transmission of various signals in live production, and can be adapted to the whole series of INCAM micro cameras and remote control heads.
FlexiOptic can be can be connected by single-mode fiber, or uses optional power supply unit to connect on SMPTE hybrid cable, and supply power to remote device at the same time.

Feature

  • 1RU half-width compact size with AC/DC redundant power supply
  • Compatible with common single-mode fiber, transmission distance up to 10 km
  • Independent video transmission channels with re-clocking and cable equalization, all input/output processing passed Pathological test
  • Data transmission supports serial communication, GbE and GPIOs. Serial communication channel supports RS-422 and SONY camera interface
  • Optional power supply unit can supply 100W power to remote device up to 1 km away
  • Optional video expand unit supports third-party optical transmission equipment by Duplex CWDM technology

    • Specifications

    DimensionWeightPowerOperating TemperatureOperating Humidity
    218mm×45mm×273mmApprox. 2.2kgAC 100-240V，DC 9-16.8V，30W-10℃ to +40℃20% to 80%
    EthernetGPIOOptical
    RJ45(x1) ,1000BASE-TXRJ45 (×1)，2 input 2 outputLC (x2)
    Serial communicationSynchronizationTransmission distance
    RJ45 (×1)，support SONY protocolBNC (×1)，Black burst, PAL/NTSCOptional 40 km or 80 km
    Video FormatConnectorsSignal FormatImpedanceCable Equalization
    12G-SDIBNC (×8) Max. 4 channel
    with loop out and reclocking    		SMPTE ST 2082-1/2081-1
    SMPTE 424M/292M/259M    		75Ω />4dB50m，Belden 4794R
    3G-SDI75Ω />10dB100m，Belden 1694A
    Video FormatSignal AmplitudeDC OffsetRising/Falling TimeJitter Timing/Align
    12G-SDI800mV0V±5mV38ps/37ps0.58UI/0.10UI
    3G-SDI56ps/ 52ps0.12UI/0.05UI
