VST-4400 Series Versatile Optical Signal Solution

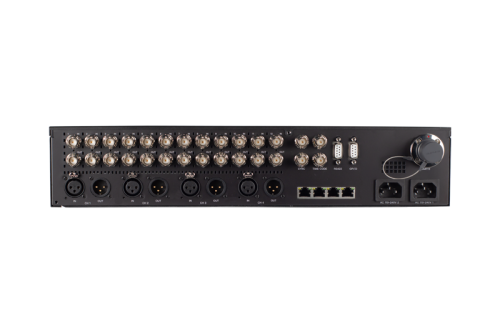

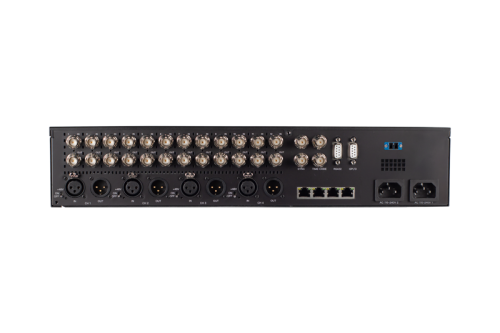

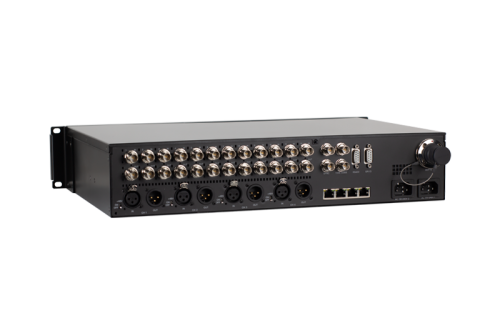

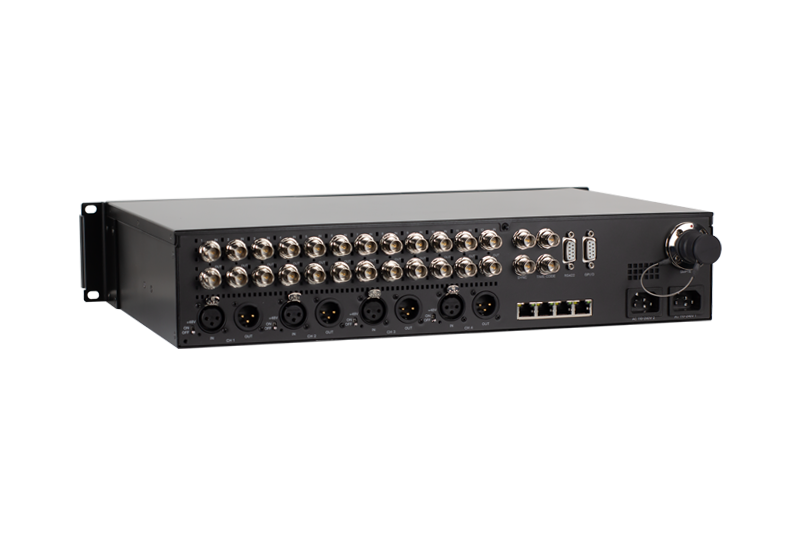

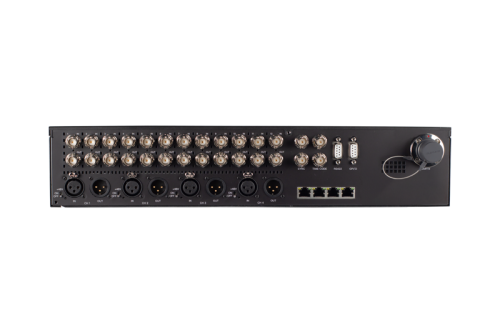

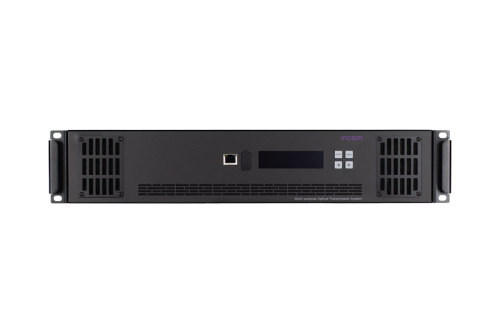

Gallery

Overview

The ProOptic series is a diversified and versatile optical signal solution. It supports 12 channels of 12G-SDI, 4 bidirectional audio, 1 Independent Sync, 2 RS-422 serial data, 4 Gigabit Ethernet, 4 GPIO, etc. ProOptic series achieves signal extension unit via SMPTE hybrid cables, which can be widely used in applications such as Venue Production and Sports Broadcasting.

Feature

  • 2 RU size chassis with AC power supply, dual redundant AC power supply as option
  • Support SMPTE 304M connector/ LC connector with options including SC, FC, ST standard connectors
  • Compatible with common single-mode fiber, typical transmission distance up to 10 km, optional 80km distance module
  • Independent video transmission channels with re-clocking and cable equalization, all input/output processing passed Pathological test
  • Built-in bidirectional CWDM, support third-party optical transmission equipment (specified wavelength)
  • Adhere to analog line standards and supports 4-wire intercom，supports Mic/Line audio signals and +48VDC Phantom power

    • Specifications



    DimensionWeightPower ConsumptionOperating TemperatureOperating Humidity
    218*45*273mmappr.2.3kgAC 100-240V0℃ to +40℃20% to 80%
    EthernetSerial DataSYNCGPIOFiber Connector
    RJ45(X4) ,4000BASE-TXDB9BNC (X2)DB9LC (x2)
    VideoConnectorsSignal FormatImpedanceCable Equalization
    12G-SDIBNC
    (×24MAX)    		SMPTE ST 2082-1/2081-1
    SMPTE 424M/292M/259M    		75Ω />4dB50m，Belden 4794R
    3G-SDI75Ω />10dB100m，Belden 1694A
    VideoAmplitudeDC OffsetRising/Falling TimeJitter Timing/Align
    12G-SDI800mV±4mV38ps/37ps0.58UI/0.10UI
    3G-SDI56ps/ 52ps0.12UI/0.05UI



    Resources and downloads

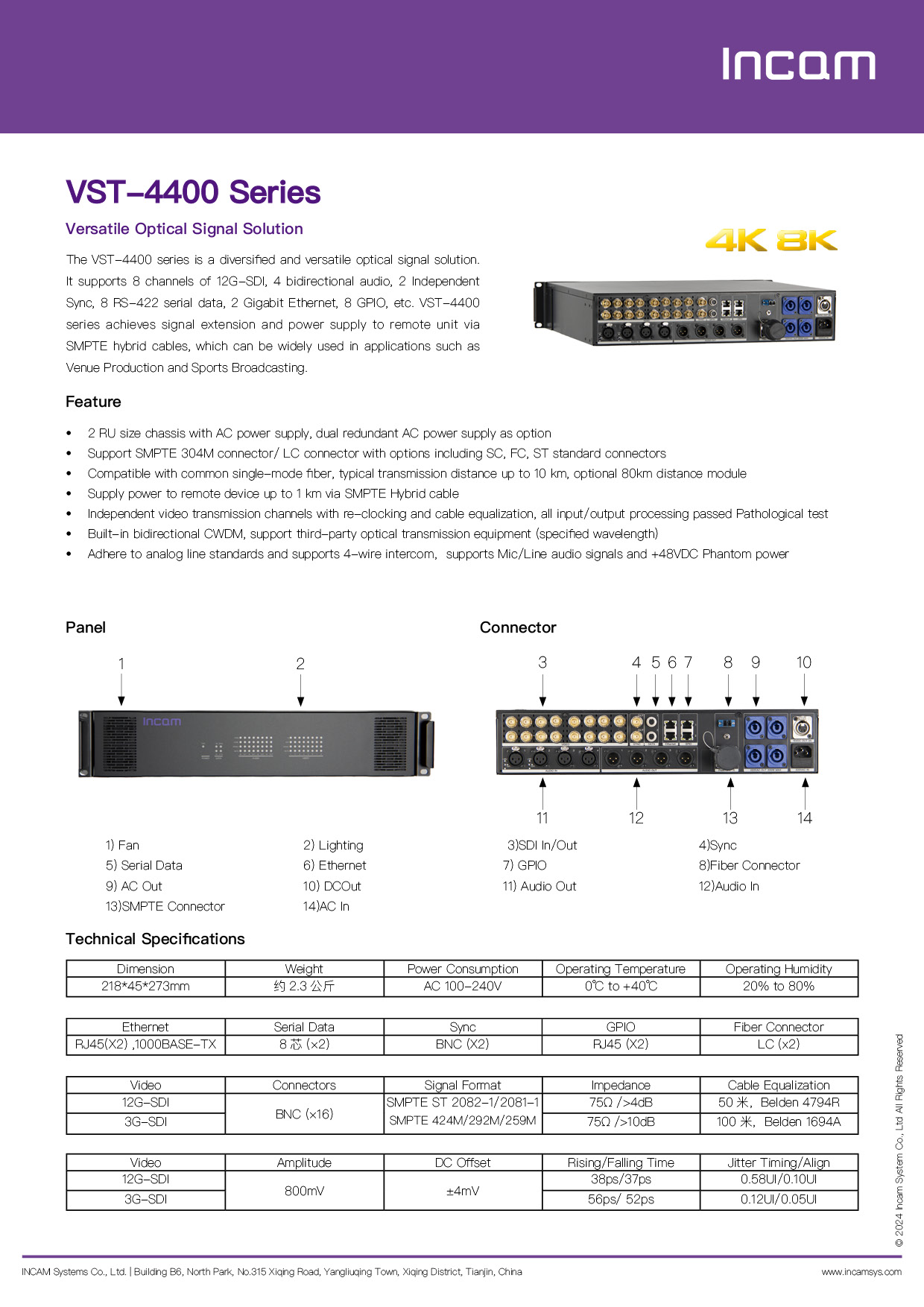

    VST-4400 Series Versatile Optical Signal Solution_EN
