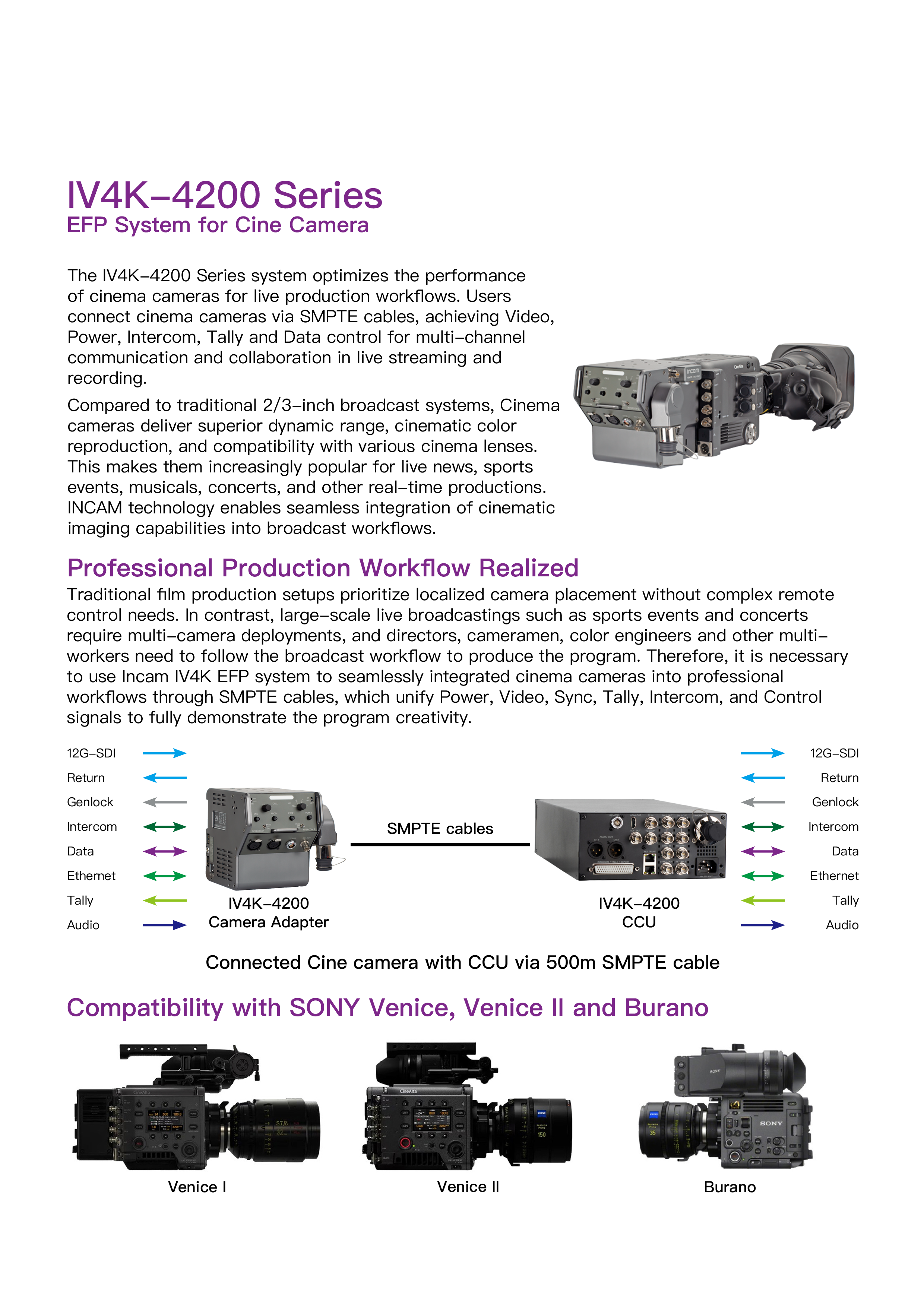

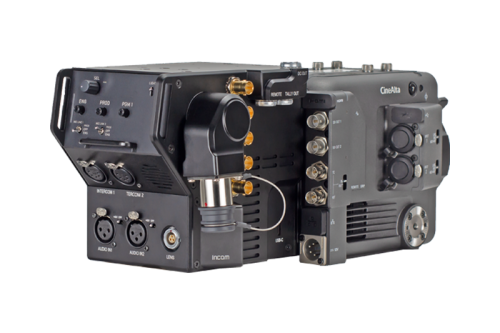

The IV4K-4200 Series system optimizes the performance of cinema cameras for live production workflows. Users connect cinema cameras via SMPTE cables, achieving Video, Power, Intercom, Tally and Data control for multi-channel communication and collaboration in live streaming and recording.
Compared to traditional 2/3-inch broadcast systems, Cinema cameras deliver superior dynamic range, cinematic color reproduction, and compatibility with various cinema lenses. This makes them increasingly popular for live news, sports events, musicals, concerts, and other real-time productions.
INCAM technology enables seamless integration of cinematic imaging capabilities into broadcast workflows.
Compared to traditional 2/3-inch broadcast systems, Cinema cameras deliver superior dynamic range, cinematic color reproduction, and compatibility with various cinema lenses. This makes them increasingly popular for live news, sports events, musicals, concerts, and other real-time productions.
INCAM technology enables seamless integration of cinematic imaging capabilities into broadcast workflows.
Feature

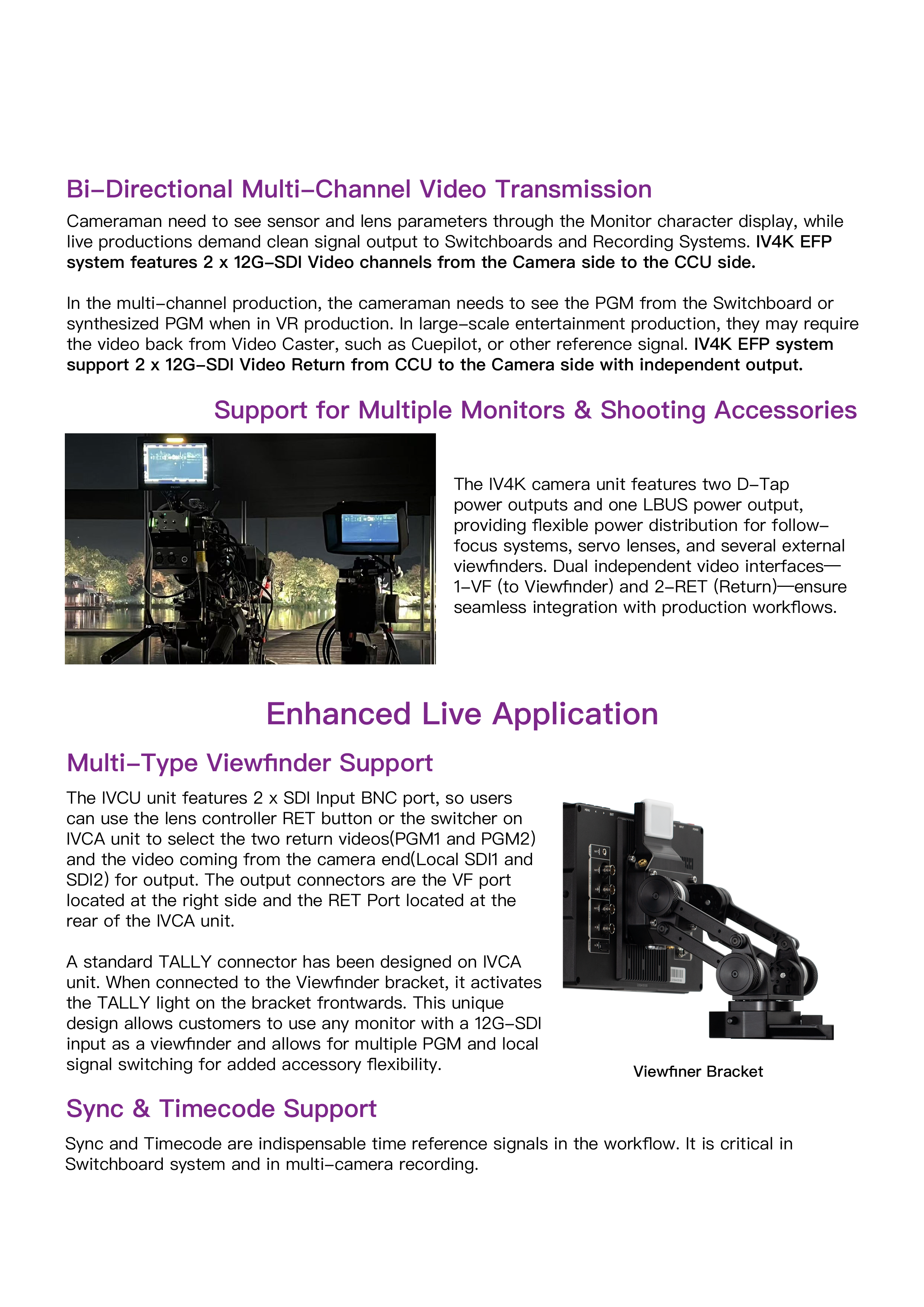

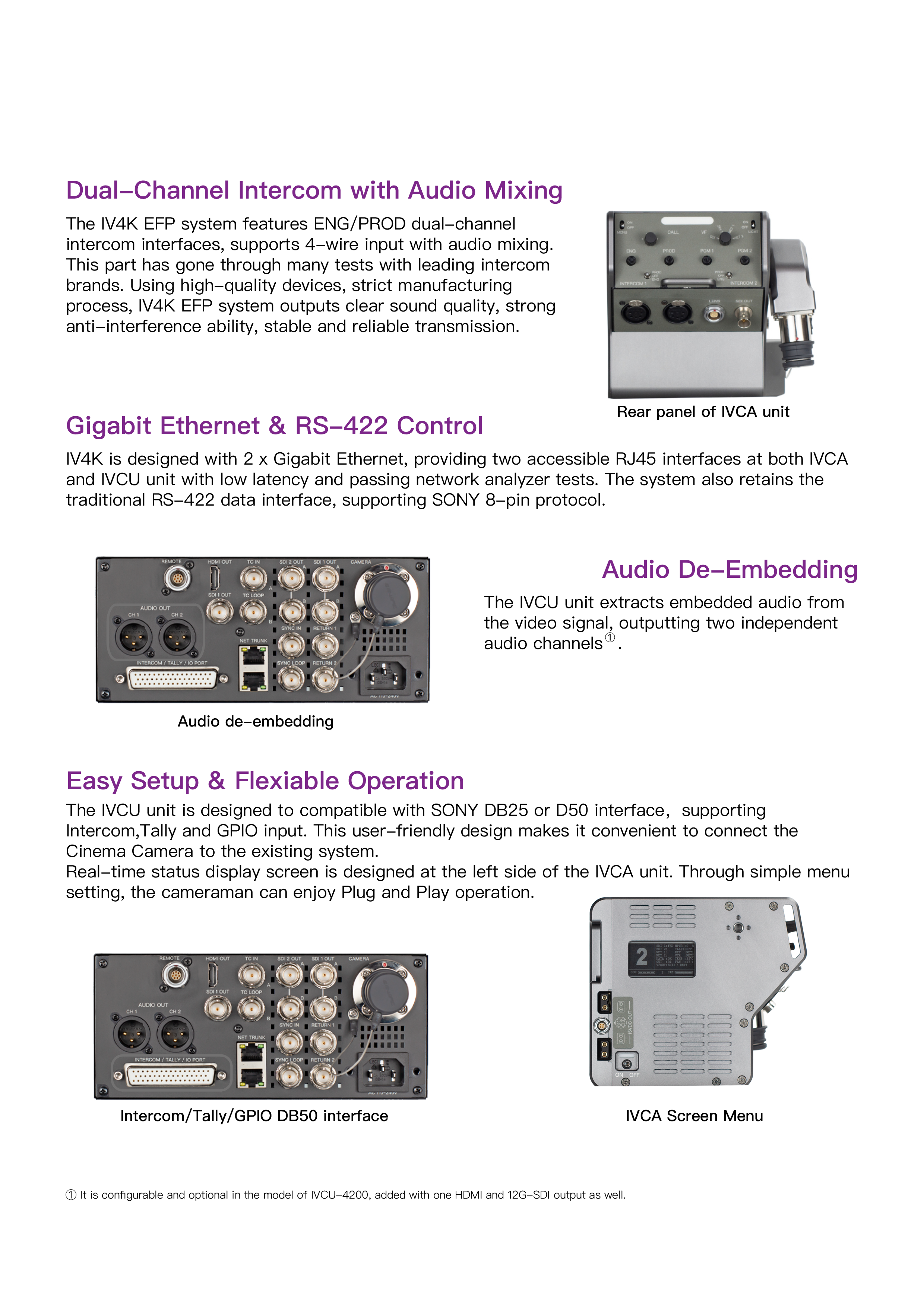

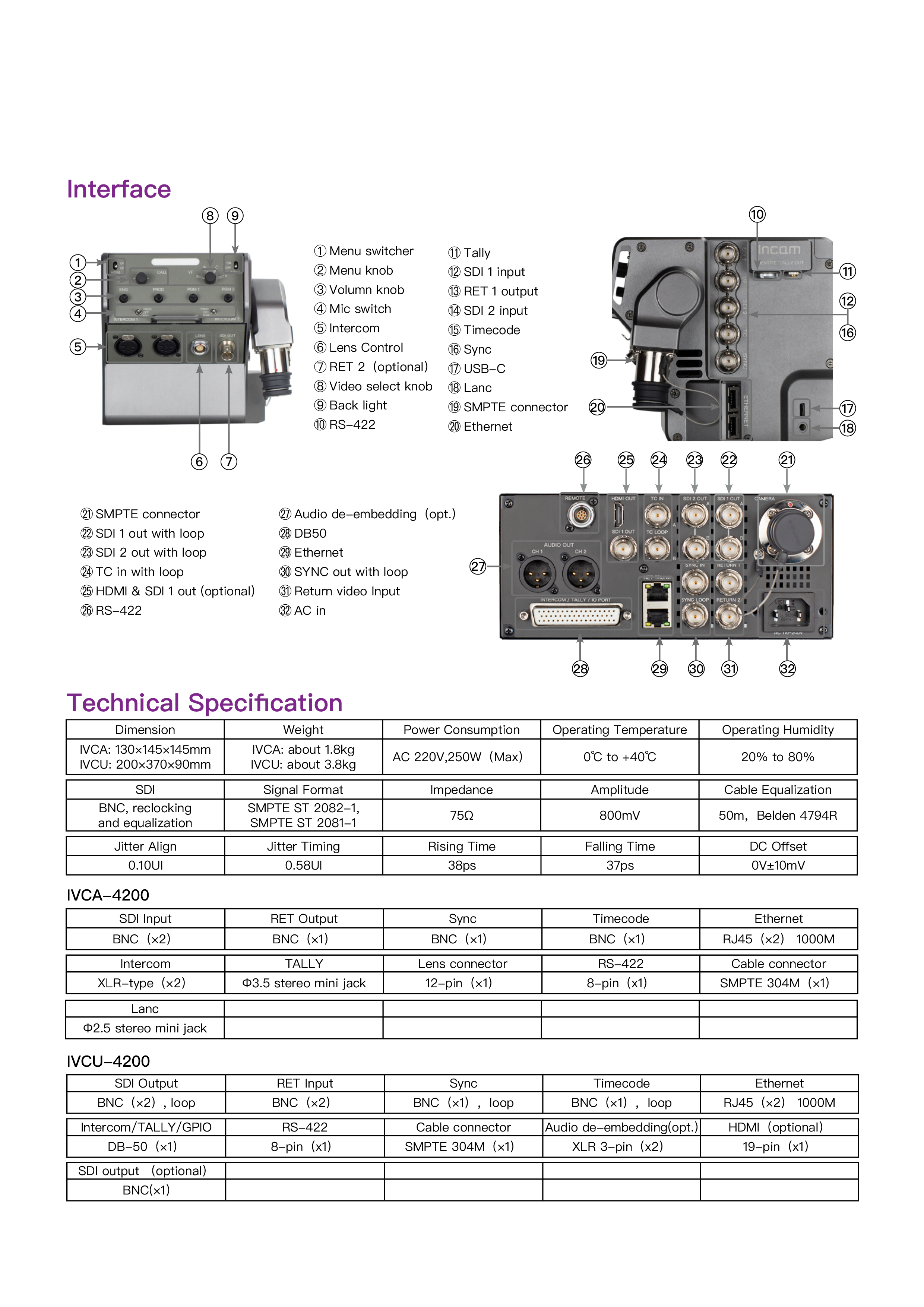

Specifications
| Dimension | Weight | Power Consumption | Operating Temperature | Operating Humidity |
|---|---|---|---|---|
| IVCA: 130×145×145mm IVCU: 200×370×90mm | IVCA: about 1.8kg IVCU: about 3.8kg | AC 220V,250W（Max） | 0℃ to +40℃ | 20% to 80% |
| SDI | Signal Format | Impedance | Amplitude | Cable Equalization |
|---|---|---|---|---|
| BNC, reclocking and equalization | SMPTE ST 2082-1, SMPTE ST 2081-1 | 75Ω | 800mV | 50m，Belden 4794R |
| Jitter Align | Jitter Timing | Rising Time | Falling Time | DC Offset |
|---|---|---|---|---|
| 0.10UI | 0.58UI | 38ps | 37ps | 0V±10mV |

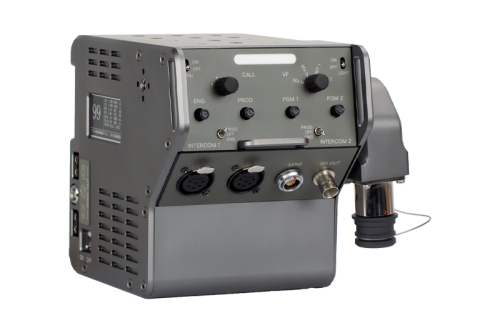

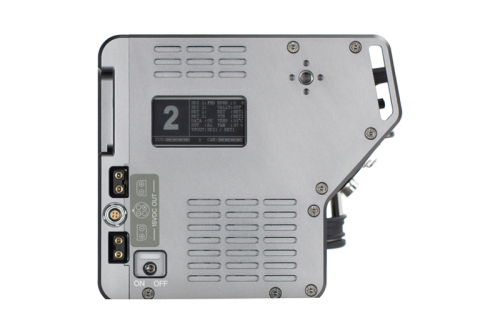

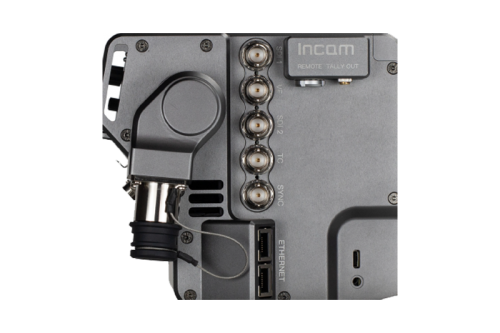

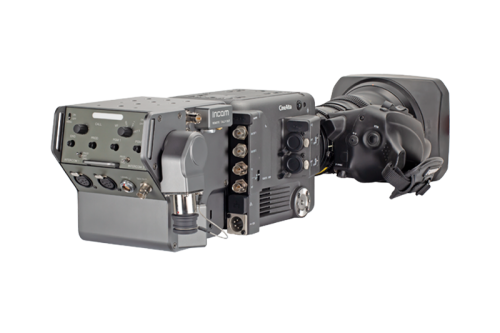

IVCA-4200
| SDI Input | RET Output | Sync | Timecode | Ethernet |
|---|---|---|---|---|
| BNC（×2） | BNC（×1） | BNC（×1） | BNC（×1） | RJ45（×2） 1000M |
| Intercom | TALLY | Lens connector | RS-422 | Cable connector |
|---|---|---|---|---|
| XLR-type（×2） | Φ3.5 stereo mini jack | 12-pin（×1） | 8-pin（x1） | SMPTE 304M（×1） |
| Lanc | ||||
|---|---|---|---|---|
| Φ2.5 stereo mini jack |

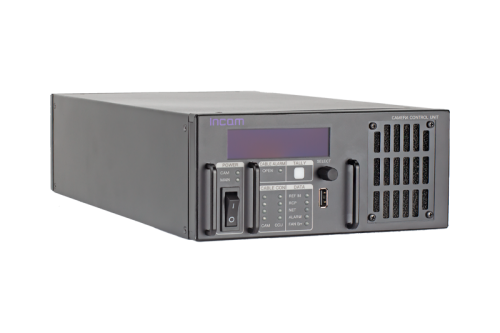

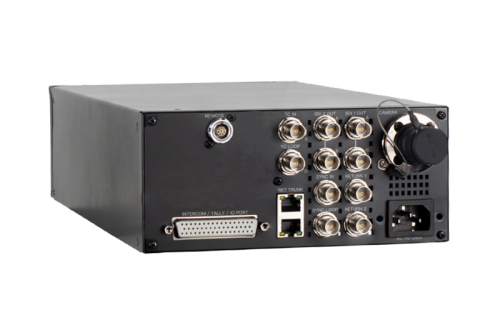

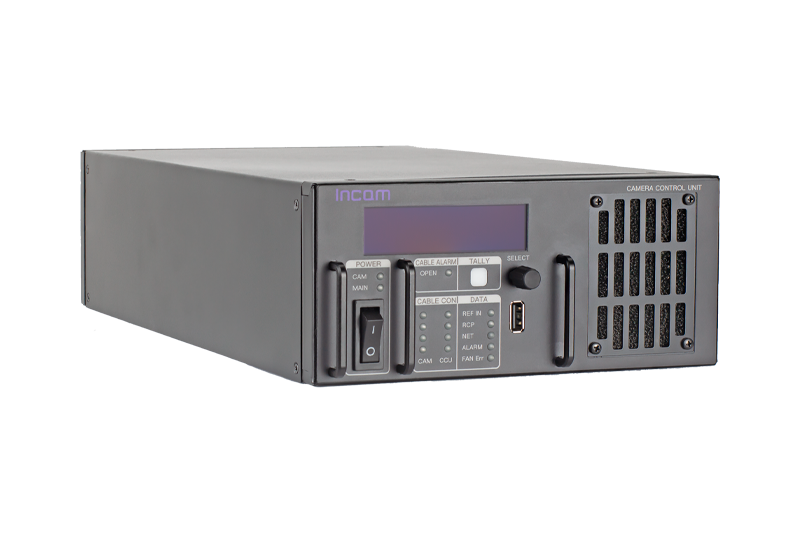

IVCU-4200
| SDI Output | RET Input | Sync | Timecode | Ethernet |
|---|---|---|---|---|
| BNC（×2）, loop | BNC（×2） | BNC（×1），loop | BNC（×1），loop | RJ45（×2） 1000M |
| Intercom/TALLY/GPIO | RS-422 | Cable connector | ||
|---|---|---|---|---|
| DB-50（×1） | 8-pin（x1） | SMPTE 304M（×1） |
